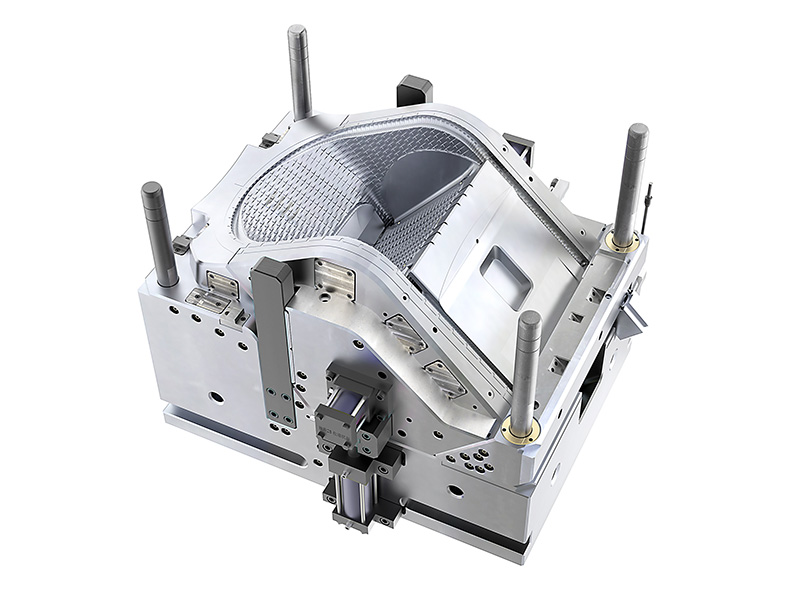

Introduction
Office chair mould is model or tool used in the production of office chairs and often used in institutions such as businesses, schools and libraries. In all these environments, office chairs play a key role in providing individuals with comfortable seating that is acceptable for long hours of seated work. The quality of the design and production of office chair molds thus has a significant impact on the quality, comfort and durability of office chairs.

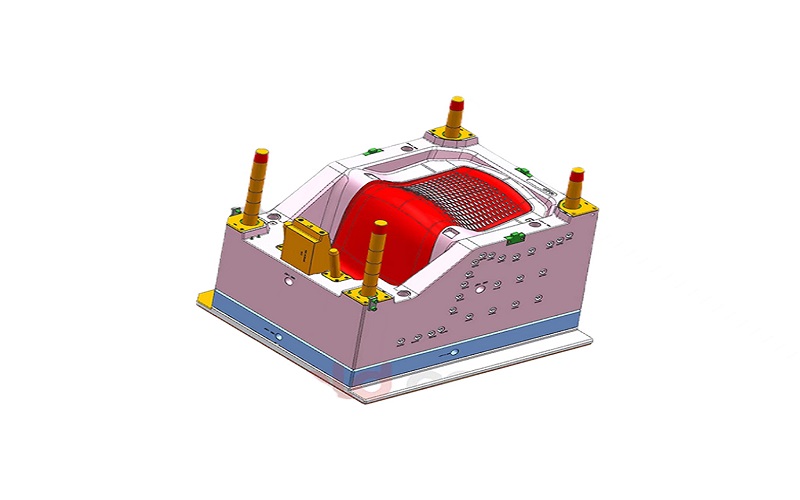

The key points of designing a office chair mold
Designing an office chair mold is a complex process that requires an in-depth understanding of the injection molding process, ergonomics and material selection to ensure that the product meets the comfort and aesthetic requirements of the workspace. The following are key points that should be considered:
Ergonomics
Ergonomics is a crucial factor when designing office chair molds, the angle and curvature of the backrest should support the natural curve of the spine. The mold design uses features such as height adjustment, lumbar support and armrests. Back pain, fatigue and other problems can be relieved by adjusting the seat height and backrest angle.

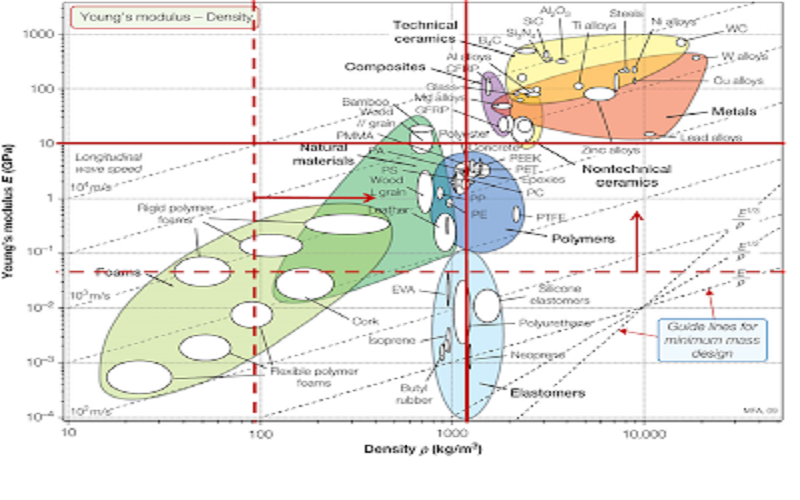

Material Selection
The plastic material used depends on the specific component. For example, structural components like bases or armrests may be made of durable materials like polypropylene or ABS, while softer components like cushion supports may be made of more resilient materials. Plastics are usually in the form of small particles.
Manufacturing process
The manufacturing process chosen needs to be compatible with the design and material of the office chair. For example, if the design includes complex geometry, or if the material is a heat-resistant plastic, injection molding may be the preferred method. However, if you are manufacturing metal parts, then die casting may be more appropriate.

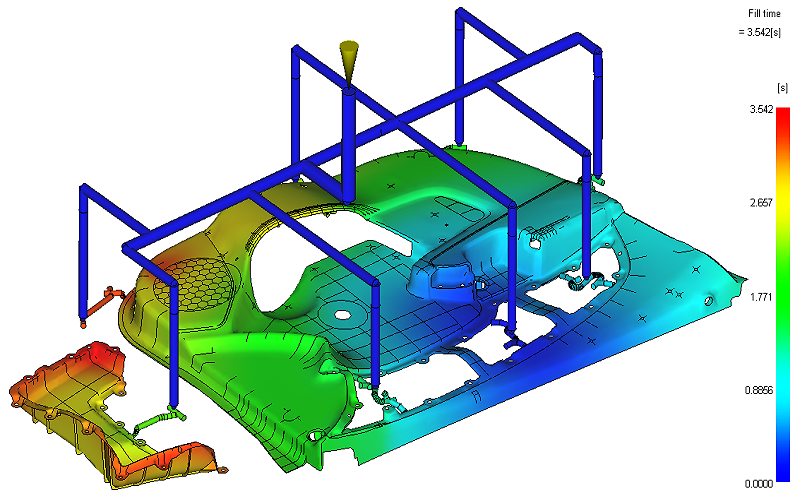

Moldflow of plastic chair mould
Mold flow analysis is a critical step in the mold design process, especially for complex parts like office chairs. Performing a mold flow analysis can help predict and eliminate potential defects and optimize the mold design. This step helps to understand how material flows and solidifies in the mold so that design or process parameters can be adjusted to ensure quality and reduce waste.
A filling analysis is first performed to evaluate the filling of the mold during the injection molding process. It helps to determine the ideal gate location for efficient and uniform filling, reducing the chance of defects such as shortages (incomplete filling), weld lines (at separate flow front intersections) and air traps (bubbles in the final part).
Once the mold is filled, additional material is packed into the mold to compensate for shrinkage in the part to be cooled. The cooling rate and uniformity of the entire part is then evaluated, which will affect the final size of the part, the surface finish and the likelihood of warpage (distortion).
Finally a warpage analysis is performed to predict the extent to which the part may warp due to different cooling and shrinkage rates Helps the designer modify the part or mold design, or adjust process parameters to reduce warpage.
Different types of office chair molds
In the manufacturing process of office chairs, different types of molds are required to make different parts and materials of the office chair. Here are some of the main types of molds used.
Injection Mould: Typically used to make plastic parts for chairs such as backs, bases, armrests, and even smaller parts. In injection molding, heated plastic is injected into the mold cavity, cooled and hardened into the shape of the part.
Metal Mould: For office chairs with metal parts (such as certain frames or foundations), techniques such as casting or stamping can be used. In the casting process, molten metal is poured into a mold, which is then cooled and hardened. In stamping, a flat piece of metal is pressed into a mold under high pressure to form the desired shape.
Foam Mould:Office chair seat and back padding is usually made of foam. The liquid foam components are mixed together and then poured into a mold where they react with each other and expand to fill the mold. After the foam has solidified and hardened, it can be removed from the mold and trimmed to the exact shape and size.
Casting Mould: Some parts of the office chair, such as the wheels or certain types of bases, might be made using casting molds. Materials like metal or plastic are heated and poured into the casting mold, where they solidify into the desired shape.

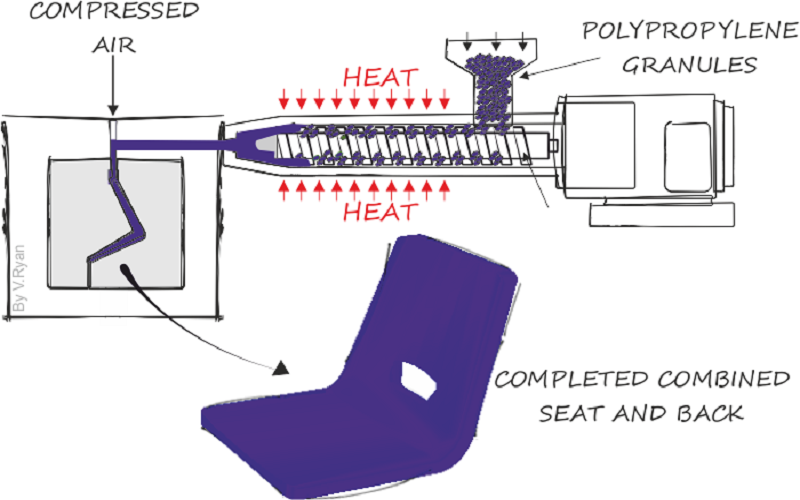

The Injection Process Of Office Chair Mould
The process of making plastic parts for office chairs usually involves a method called injection molding. This is a manufacturing technique that creates parts from thermoplastics and other materials that can be heated and remolded. The following is an overview of the process.
The process begins when the plastic pellets are heated to molten. The molten plastic is then injected into the mold under high pressure and begins to cool and harden into the shape of the mold. Once the plastic is completely cooled and solidified, the mold halves are separated and the finished part is ejected. An ejector pin built into the mold pushes the part out.
After ejection, the part may have excess plastic from the injection point, called a gate or runner, which needs to be trimmed off. The part can also be assembled with additional finishing steps such as painting, polishing, or with other parts.
Throughout the process, precision and control are critical. Accuracy control is achieved during the design and processing of the mold, and the parameters of the injection molding machine are carefully set to ensure that the finished product has the correct dimensions, strength, and surface finish.
Application
With advances in technology, plastic chair mould can now produce chairs with integrated functions and features such as adjustable height, lumbar support and tilt options, which are widely used in the automotive industry, the furniture industry, the healthcare sector and the education sector.

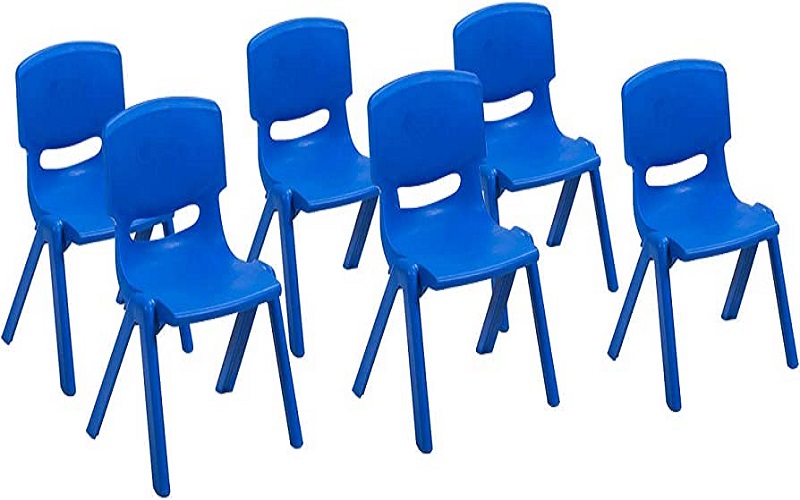

Educational institutions
In schools, universities and other educational institutions that require comfortable and ergonomic environments for faculty and staff, office chair is one of the most common pieces of equipment, and they help reduce fatigue and back pain.

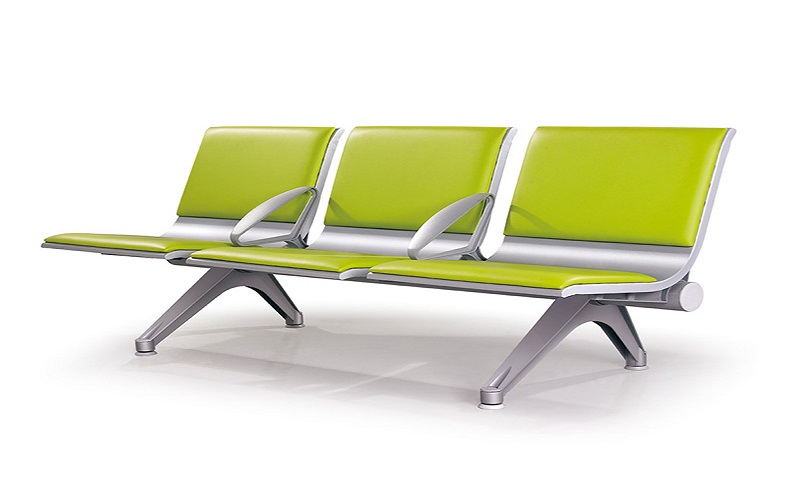

Healthcare
When it comes to healthcare facilities, office chair mould work – they allow for customization of the chair to fit the needs of the patient and healthcare staff. Whether it’s a chair that provides extra cushioning for patients or adjustable features for staff, having a dedicated office chair can improve the overall experience for everyone.

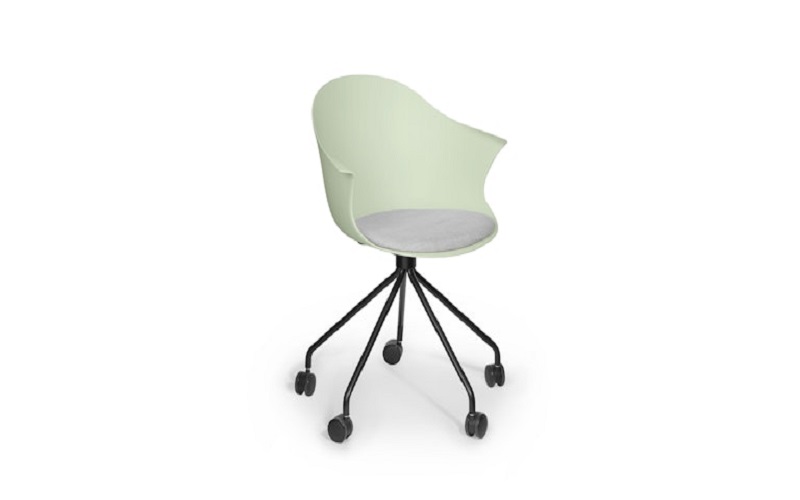

Corporate office
Whether it is a large company or a small start-up, office chairs are an important part of the office equipment. Employees work for long hours using office chairs, so it is important to choose office chairs that are comfortable and support good sitting posture.
Why choose FowMould to make the office chair mold?
The important role that quality moulding plays in creating effective, comfortable and ergonomic office chairs cannot be underestimated. As a leading manufacturer in the injection molding industry in China, FowMould is committed to providing our customers with the highest quality molds. With an experienced and efficient management team, we ensure high quality production of chair molds with our years of experience in chair mold manufacturing and advanced injection molding machine.
At FowMould, on-time delivery is not only a business guideline, but also a commitment. As one of the industry’s leading mold manufacturers, FowMould adheres to a strict commitment to timely delivery and understands that late shipments can cause significant problems for customers. To address this issue, the company has established a reliable and streamlined delivery process to ensure that goods are produced within the promised time frame.Therefore, if you want to choose the right office chair mold manufacturer, FowMould is the best choice.
Conclusion
Office chair molds are an important tool in the production of quality office seating. The design process must take into account ergonomics, material selection and manufacturing processes to produce comfortable, durable and aesthetically pleasing chairs. Mold flow analysis helps to predict potential defects and optimize the mold design. Different chair components and materials require different molds, and a common manufacturing process is injection molding. These molds are used in a variety of applications such as education, medical, corporate office, utility and industrial uses.
