With the rapid development of the automotive industry, the demand for automotive components has been increasing significantly.
Injection molding, as one of the crucial production processes for automotive parts, is being widely applied in car production. This process involves heating, melting, and injecting plastic materials to form products with specific shapes and dimensions.
Automotive injection molding is essential for making plastic parts in cars. This article will explain what it is, why it’s important, and how it’s used in car manufacturing. You’ll also learn about the advantages, materials, and new technologies in this process.

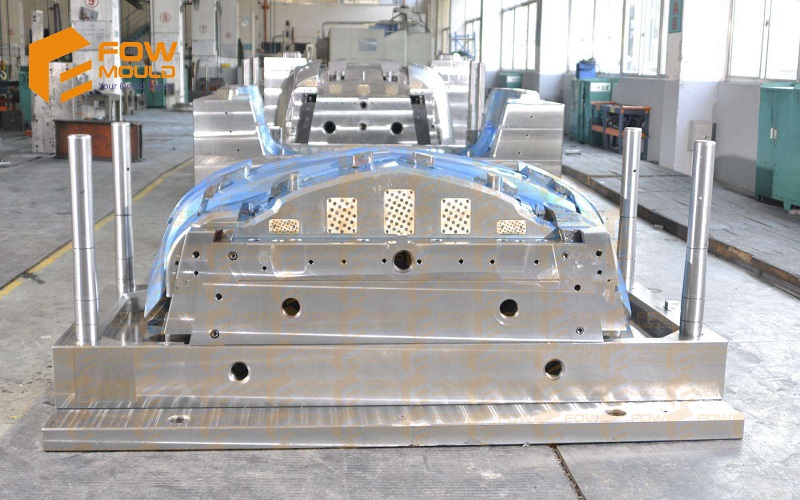

What Is Automotive Injection Molding?
Automotive injection molding process traces its origins back to the 1940s when the first thermoplastics suitable for the process were developed.
Automotive manufacturers unveiled the first plastic structural components for cars, which had the advantage of being more lightweight than their metal counterparts, unlocking improved fuel efficiency and cheaper production.
However, in the late 1970s and early 1980s, plastic injection molding began to replace other manufacturing processes for a broader range of auto parts, including critical components like dashboards and bumpers.
Injection molding is an established process for many exterior automotive components, including fenders, grilles, bumpers, door panels, floor rails, light housings, and more.
Its efficiency, repeatability, and ability to produce lightweight, durable plastic injection molded parts with tight tolerances make it indispensable for automotive applications.
The process supports high-volume production and can incorporate various materials, such as thermoplastics and composites, tailored for strength, heat resistance, or aesthetics.
This versatility makes automotive injection molding a preferred choice for auto parts manufacturers looking to produce high-quality plastic parts efficiently within their manufacturing processes.
Advantages Of Injection Molding For Automotive Industry
Injection molding offers a range of compelling advantages for the automotive production, including:
Cost efficiency
Compare with traditional manufacturing methods,Injection molding is cost-effective due to its ability to produce large quantities of parts efficiently.
It is particularly favored for high-production runs in the automotive sector for its low tooling costs per unit and material savings by minimizing waste.
Plastic’s lower production costs compared to metal parts and current resource scarcity enhance injection molding’s cost effectiveness.
This makes it a cost-effective solution for automotive manufacturers aiming to reduce costs while maintaining high-quality standards, especially when using plastic components.
High Precision and Consistency
The injection molding process ensures exceptional precision and consistency in automotive parts. For instance, molds for dashboards achieve extremely tight tolerances, with minimal dimensional deviations, ensuring seamless integration with other vehicle components.
This high level of precision and uniformity enhances the overall quality and reliability of automobiles.
Rapid Production
Injection molding facilitates high-speed, large-scale production. With rapid mold switching and automated production lines, it significantly boosts efficiency and output.
For example, micro-foaming injection molding technology optimizes equipment performance, markedly improving the production speed of components like trim panels.
Material Versatility
Injection molding accommodates a broad range of polymers of plastics and composites, offering flexibility in terms of strength, durability, and aesthetics.
This versatility allows automotive manufacturers to select the most suitable materials for high quality parts, ensuring an optimal balance between performance and visual appeal.
Material Selection In Automotive Plastic Injection Molding
Material selection in automotive plastic injection molding is a critical factor that influences part performance, durability, cost, and manufacturability.
The choice of material depends on the specific application, environmental conditions, regulatory requirements, and design goals.
Our injection moulded exterior and interior car components for the automotive industry are predominantly engineered out of the following materials:
Acrylonitrile Butadiene Styrene (ABS)
Applications: Dashboards, grilles, and interior panels.
Properties: High impact resistance, good surface finish, and paintability. Can be blended with polycarbonate (PC/ABS) for enhanced heat resistance.
Advantages: ABS material is ideal for aesthetic parts requiring smooth surfaces and durability.
Polypropylene (PP)
Applications: Bumpers, interior trim, battery cases, and cable insulation.
Properties: Lightweight, cost-effective, good impact resistance, and chemical stability. Often reinforced with glass fibers or talc for added strength.
Advantages: Easy to process, recyclable, and versatile for both interior and exterior parts.
Polyamide (PA, Nylon)
Applications: Engine covers, air intake manifolds, and structural components.
Properties: Excellent heat resistance, high strength, and wear resistance. Often glass-fiber-reinforced (PA-GF) for added rigidity.
Advantages: Suitable for under-the-hood parts exposed to high temperatures and mechanical stress.
Polyoxymethylene (POM, Acetal)
Applications: Gears, clips, fasteners, and fuel system components.
Properties: High stiffness, low friction, and excellent dimensional stability.
Advantages: Perfect for precision parts requiring wear resistance and low moisture absorption.
Processing Methods Used in Automotive Injection Molding Process
Automotive injection molding involves various processing methods to meet the design, performance, and production needs of different components. Here are some commonly used processing methods:
Die casting
Die casting is integral to the automotive sector, serving various roles like crafting engine components and producing brackets for stepper and electric motors
In-Mold Labeling (IML)
Similar to IMD, but involves embedding labels or functional layers within the mold, often used for parts with identification or anti-slip features, such as control panels.
Two-Shot Molding
Two shot molding involves injecting two different colors or materials of plastic in a single injection cycle to create parts with dual-color or multifunctional characteristics, such as dual-color taillight housings.
Gas-Assisted Injection Molding
Injects gas (such as nitrogen) during the molding process to create hollow structures, reducing material usage and improving surface quality. Gas-Assisted Injection Molding is suitable for producing thick-walled parts like door handles.
Water-Assisted Injection Molding
Similar to gas-assisted but uses water as the assisting medium, water-assisted injection molding offering faster cooling, suitable for producing complex hollow parts like pipes or structural components.
Insert Molding
Involves embedding metal or other prefabricated parts into the mold before injecting plastic to form composite parts. Insert molding is commonly used for producing components with nuts or connectors.
Reaction Injection Molding (RIM)
Uses low pressure to inject reactive resins (such as polyurethane) into the mold, suitable for producing large flexible or high-strength parts like bumpers or body panels.
Applications of Injection Molded Automotive Parts
Automotive injection molding are widely used in car manufacturing due to their high precision, durability, and cost-effectiveness, making them an ideal choice for producing various manufacturing parts.
Here is a detailed overview of the primary applications of injection molded parts in the automotive sector:
Interior Trim
Injection molded parts are widely used in producing automotive interior components such as instrument panels, center consoles, door panels, and seat trim.
These interior trim components achieve complex designs and high-quality surface finishes through the injection molding process, combining aesthetics and functionality.
For example, In-Mold Decoration (IMD) technology can embed decorative layers directly during the injection molding process, enhancing the visual appeal and tactile feel of interior components.
Engine Parts
In the engine compartment, injection molded parts are used to manufacture components resistant to high temperatures and chemical corrosion, such as air vents, battery housings, coolant containers, and sensor casings.
These parts, with their lightweight and high-strength characteristics, optimize the performance and space utilization of the engine compartment.
Exterior Component
Applications of injection molded parts in exterior components include bumpers, grilles, headlight and taillight housings, and side mirror covers.
These automotive parts achieve aerodynamic designs and weather resistance through the injection molding process, ensuring a perfect blend of appearance and functionality.
Structural and Functional Parts
Injection molded parts are used in producing structural components like seat frames, HVAC system ducts, wire harness fasteners, and connectors.
These complex-shaped parts, made using high-strength plastics or composites, reduce vehicle weight while meeting stringent safety and performance standards.
Electrical and Electronic Systems
In electric vehicles ，automotive companies use injection molding to manufacture fuse boxes, connector housings, and control module casings.
These parts offer excellent insulation and precision, protecting electronic components from environmental impacts and are widely used in infotainment systems and electronic control units.
Safety and Soundproofing Components
Injection molding are used to produce airbag housings, seat belt fasteners, as well as soundproof panels and vibration dampers. These plastic parts enhance vehicle safety and driving comfort through precise design and material selection.
Future Trends Of Injection Molding In Automotive Sector
The future of injection molding in the automotive sector is poised for significant advancements, driven by technological innovations, sustainability demands, and evolving vehicle designs. Below are the key trends shaping its trajectory:
Sustainable Materials and Processes
The push for eco-friendly manufacturing is driving the adoption of bio-based, recycled, and recyclable plastics in injection molding.
Automotive manufacturers are increasingly using materials like recycled thermoplastics and biopolymers to produce parts such as interior trim and exterior panels, aligning with circular economy goals.
Additionally, energy-efficient molding processes, such as electric injection molding machines, are reducing the carbon footprint of production.
3D Printing Integration
Combining 3D printing with injection molding allows for the rapid creation of complex parts, enhancing design capabilities. This integration significantly accelerates the prototyping process, enabling manufacturers to produce complex designs more efficiently.
Reliance on injection molded plastic parts to improve safety, increase fuel efficiency, use alternate fuels and electricity, and reduce environmental impact continues to evolve in dynamic new directions.
Summary
In conclusion, automotive injection molding plays a crucial role in the automotive industry. With its efficient, precise, and versatile production capabilities, the injection molding process can produce lightweight, high-quality plastic components, thereby enhancing vehicle performance and fuel efficiency.
As technology continues to advance and the demand for sustainability increases, innovations in material selection and production processes will continue to drive the development of the automotive manufacturing industry.
In the future, injection molding will play an even greater role in the application of electric vehicles and eco-friendly materials, bringing more opportunities and challenges to the automotive sector.
